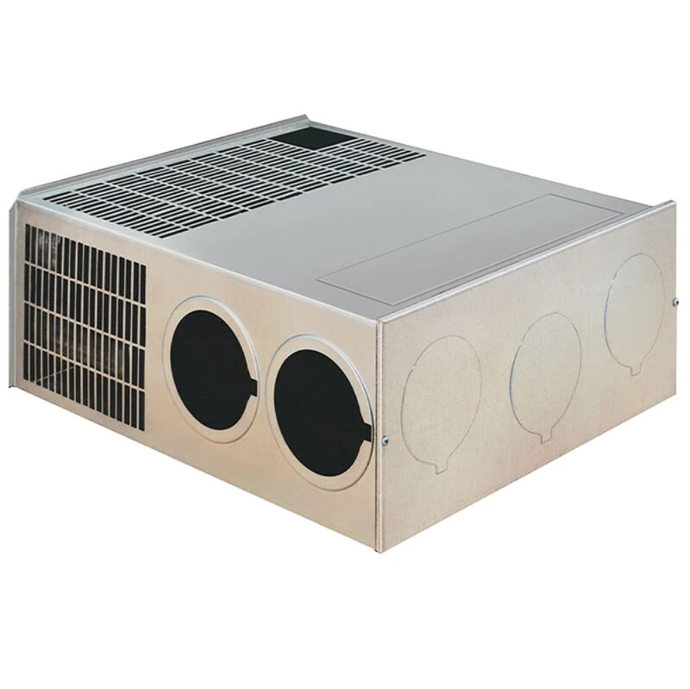

Suburban SF-35VHFQ RV Furnace
SUBURBAN
Furnace; SFV-Q Series; LP Gas; Model SF-42VHQ Vertical Mount; 42000 BTU; Side/ Top And Bottom Duct Discharge; 9 Amp Draw; 7-1/2 Inch Height x 17 Inch Width x 20 Inch Depth; 35.6 Pounds; With Energy-Saving Direct Spark Ignition; Without Access Door
Product Tooltip:
Storable products are physical items for which you manage the inventory level.
Attributes
- BTU Level: 35000 BTU
- Discharge Type: Side
- Type: LP Gas
- Stage: Dual
- Ignition Type: Direct Spark Ignition
- Width: 17 Inch
- Height: 7-1/2 Inch
- Depth: 20 Inch
- With Vent Assembly: No
- With Access Door: No
Product Description
Designed, built and backed by one of the most trusted names in the RV Industry, the Suburban line of powerful furnaces provide superior, dependable heating in uniform cabinet sizes for installation flexibility. Warm up to an inviting coach interior with quiet, low noise, dependable heating solutions.
Features & Benefits
- Provide Maximum Heating Performance In A Ducted Unit For Increased Design Flexibility In Mid-Size And Large RVs
- Can Be Easily Installed In Areas That Might Otherwise Be Left Unused
- Designed For Interior Serviceability
- Easy To Install
- Limited 2 Year Warranty
The Suburban SF-42Q Furnace provides maximum heating performance in a ducted unit with a 40,000 BTU/h capacity. Yet at only 7.5" high, it can be easily installed in areas that might otherwise be left unused. With nine duct connection choices (top, front, side, and bottom), the SF-42Q offers almost unlimited design flexibility in mid-size and large RVs.
The SF-42Q Model features top or side rear gas and electrical connections with an exterior access door for installation and service access. For design flexibility, all SF-Q Models have identical cabinet dimensions and feature quiet, multi-ported stainless steel burners, sealed forced-draft combustion, automatic direct spark ignition, and low amp draw.
- Model: SF-42Q
- BTU/h Input: 40,000
- Dimensions: 7.5"H x 17"W x 20"D
- Voltage: 12V DC
- Amp Draw: 9.0
- Weight: 32 lbs.
- Duct Outlet: 4" round sides/bottom; 4" x 14" bottom
- Ducted heating unit with maximum performance
- Compact size for efficient installation
- Quiet, multi-ported stainless steel burners
- Sealed forced-draft combustion
- Automatic direct spark ignition
Furnaces
Dependable heating solutions that are designed, built, and backed by one of the most trusted names in the RV industry. Suburban has been a leading manufacturer and distributor of furnaces and furnace parts for over 30 years. Warm your coach with climate control products you can depend on from Suburban. Uniform cabinet sizes ensure installation flexibility while design innovations provide quiet, low noise performance inside your RV. Suburban’s suite of furnaces and furnace products include SF-Q Series Furnaces, SF-FQ Series Furnaces, NT-SEQ Series Furnaces, NT and Park Model Furnaces, and furnace accessories such as furnace thermostats and furnace duct collars.
Benefits of Suburban Furnaces
Superior heating
Low noise output
Dependable performance
The latest in design from an industry leader
