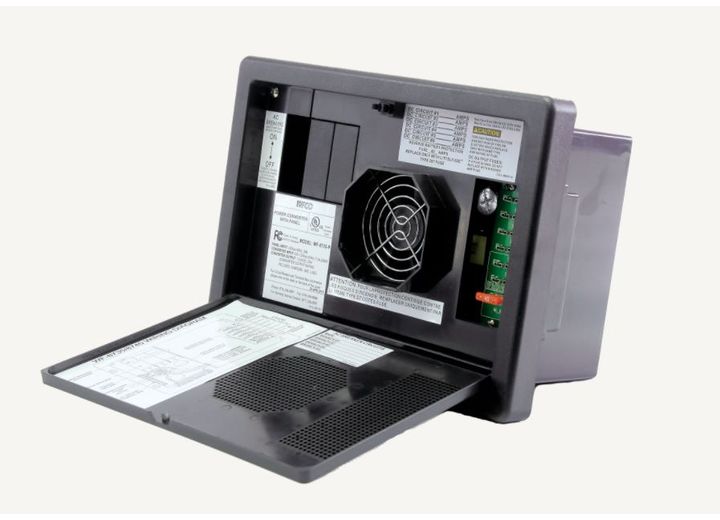

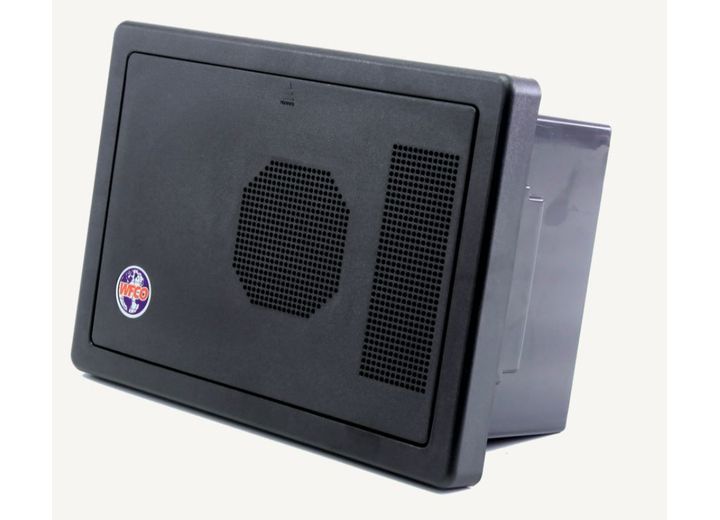

Power Converter, 8700 Series, Converter/ Charger
WFCO
Product Tooltip:
Storable products are physical items for which you manage the inventory level.
Attributes
- Converts: 105-130 Volt AC To 13.2-14.4 Volt DC
- Continuous Output Power: 340 Watt
- Peak Output Power: 430 Watt
- Ampere Rating: 25 Amp
- Number Of Outlets: 1
- Length: 3-3/4 Inch
- Width: 11-7/8 Inch
- Height: 7-5/16 Inch
- Remote On/Off Capable: No
- With Short Circuit: Yes
- With Reverse Battery Protection: Yes
- With Thermal Protection: Yes
- With Built-In Charger: Yes
- With Fuse: No
Product Description
This converters provide 25 Ampere DC output and a highly reliable nominal 13.6 VDC with or without a battery. No extra filtering is required. Three stage battery charging results in longer battery life and is totally automatic. Nominal voltage output modes are a 13.2 VDC range “float” mode, 13.6 VDC range “absorption” charge mode and a 14.4 VDC range “bulk” charge mode. Short circuit and reverse polarity protection provide you with further reliability and peace of mind. The cooling fan operates only when needed and ensures quiet operation. Every model is designed to comply with FCC Class B, which means that the converters do not cause interference with televisions, radios, or other signals. The 8700 series also brings you the convenience of built-in AC and DC distribution. 30 Ampere main AC breaker and a total of up to three 20 Ampere branch AC circuits can be installed. Four DC circuits include LED lights that illuminate to indicate open circuits.
Features & Benefits
- Three Stage Battery Charging Results In Longer Battery Life And Is Totally Automatic
- Designed To Comply With FCC Class B, Which Means That The Converters Do Not Cause Interference With Televisions, Radios Or Other Signal
- The Cooling Fan Operates Only When Needed And Ensures Quiet Operation
- The 8700 Series Also Brings You The Convenience Of Built-In AC And DC Distribution
- Limited 2 Year Warranty
